KRYOSEC: a small refrigerated air dryer for compressed air

Compact and reliable operation for optimal moisture removal

KRYOSEC compact refrigerated dryers* deliver outstanding performance with "Made in Germany" industrial quality and reliable moisture protection in ambient temperatures up to +122 °F. Lower pressure losses are thanks to the stainless steel heat exchanger system while the easy maintenance design ensures economical operation. Thanks to their compact design, they're always a great fit directly where they're needed – under machine stages, work platforms, or even mounted on the wall (TAH series).

  • Reliably dry compressed air from 12 to 159 scfm
  • Working pressure up to 232 psig
  • Options: ECO-DRAIN electronic condensate drain and/or electronic thermostat for pressure dew point warnings – both with floating alarm contacts

Your benefits:

  • Reliable moisture protection
    KRYOSEC dryers use a high-quality heat exchanger system with stainless steel plates to dry the moist compressed air. Accumulating condensate is efficiently separated in all operating phases via the integrated separator and then reliably removed via the ECO-DRAIN electronic condensate drain.
  • Dependable performance, even in high ambient temperatures:
    KRYOSEC dryers ensure reliable moisture removal, even under the most demanding of operating conditions. Performance is also enhanced by the defined cooling airflow plus the combination of a generously sized heat exchanger and refrigerant condenser surfaces.
  • Standard-compliant industrial quality:
    KRYOSEC dryers comply fully with the safety requirements for machines in accordance with EN 60204-1. Safety features include a lockable ON/OFF switch and a power supply isolating device. High-quality manufacture and a compact design make KRYOSEC dryers ideal for use within a decentralized installation – positioned directly alongside production and processing machines that require compressed air treated to the highest purity classes.

* Dryers from this series contain the fluorinated greenhouse gas R-513A.

The perfect partner: the AQUAMAT oil/water separator
AQUAMAT condensate treatment system

Our tip: Take advantage of cost-effective, legally-compliant treatment of condensate before drainage into the regular wastewater system with AQUAMAT oil/water separators.



Product details

Equipment

Refrigerant circuit

  • Refrigerant circuit consisting of reciprocating compressor
  • Fan-condenser assembly
  • Filter / dryer
  • Capillary tubes
  • Insulated air/air and air/refrigerant heat exchangers with integrated stainless steel (copper soldered) condensate separators
  • Hot gas bypass controller

Condensate drainage

ECO-DRAIN 30 electronically controlled condensate drain
  • ECO-DRAIN 30 electronically-controlled condensate drain with tap on the condensate inlet, incl. cold surface insulation

Electrical equipment and displays

  • Mechanical dew point trend display
  • Electric equipment to EN 60204-1: lockable main switch with integrated mains isolation device

Enclosure

Compact KRYOSEC refrigeration dryer – low height, wall mountable.
  • Powder-coated unit enclosure with removable hood and machine mounts
  • Prepared for wall mounting (only TAH series)

Connections

  • Design includes strain-relieved main connector cable (without plug)
  • Internally wired
  • Bulkhead pipe fitting for external condensate drain connection

Documentation

  • Includes operating manual and CE marking (EU version)

Optional: "Pressure dew point warning" floating contact

  • Electronic thermostat with floating output terminal
  • Mounted inside the unit, ready for operation
  • Signal can be picked up on-site directly at the output
  • Associated upper and lower switching thresholds configurable

Optional: Condensate drain, incl. floating contact

  • Alternatively equipped with ECO-DRAIN 31 electronic condensate drain with floating alarm contact
  • Signal can be picked up directly on the drain
Design and Function

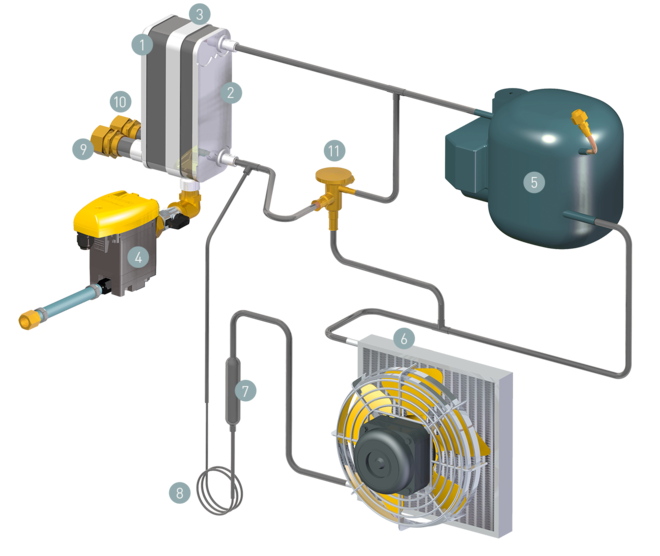

Component layout of TAH and TCH compact refrigeration dryers
  1. Air / air heat exchanger
  2. Air/refrigerant heat exchanger
  3. Condensate separators
  4. Condensate drains
  5. Refrigerant compressor
  6. Refrigerant condenser with fan (air-cooled)
  1. Filter / dryer
  2. Capillary tube (refrigerant evaporation and cooling)
  3. Compressed air inlet
  4. Compressed air outlet
  5. Hot gas bypass controller
Technical specifications TAH

Standard version

ModelTAH 5 TAH 7 TAH 10
Flow rate cfm 12 21 28
Pressure loss psi 0.73 1.89 2.18
Electrical power consumption at 100% vol. hp 0.27 0.27 0.38
Working pressure psi 44 - 232 44 - 232 44 - 232
Ambient temperature °F 38 - 122 38 - 122 38 - 122
Inlet temperature °F 140 140 140
RefrigerantR-513A R-513A R-513A
Weight lb 53 53 57
Dimensions
W x D x H in
15.2 x 18.6 x 17.3 15.2 x 18.6 x 17.3 15.2 x 18.6 x 17.3
Compressed air connection½ NPT ½ NPT ½ NPT
Condensate drain connection¼ NPT ¼ NPT ¼ NPT
Power supply230 V / 1 Ph / 60 Hz 230 V / 1 Ph / 60 Hz 230 V / 1 Ph / 60 Hz
Refrigerant mass lb 0.31 0.42 0.46
Refrigerant mass as CO2 equivalent t 0.09 0.12 0.13
Hermetic refrigeration circuit

Technical specifications TBH

Standard version

ModelTBH 14 TBH 16 TBH 23
Flow rate cfm 42 57 78
Pressure loss psi 3.19 3.48 3.34
Electrical power consumption at 100% vol. hp 0.47 0.56 0.7
Working pressure psi 44 - 232 44 - 232 44 - 232
Ambient temperature °F 38 - 122 38 - 122 38 - 122
Inlet temperature °F 140 140 140
RefrigerantR-513A R-513A R-513A
Weight lb 73 84 101
Dimensions
W x D x H in
18.2 x 20.7 x 21.6 18.2 x 20.7 x 21.6 18.2 x 20.7 x 21.6
Compressed air connection½ NPT ½ NPT 1 NPT
Condensate drain connection¼ NPT ¼ NPT ¼ NPT
Power supply230 V / 1 Ph / 60 Hz 230 V / 1 Ph / 60 Hz 230 V / 1 Ph / 60 Hz
Refrigerant mass lb 0.64 0.97 1.08
Refrigerant mass as CO2 equivalent t 0.18 0.28 0.31
Hermetic refrigeration circuit

Technical specifications TCH

Standard version

ModelTCH 27 TCH 33 TCH 36
Flow rate cfm 92 111 124
Pressure loss psi 2.61 2.76 3.05
Electrical power consumption at 100% vol. hp 0.78 1.01 1.41
Working pressure psi 44 - 232 44 - 232 44 - 232
Ambient temperature °F 38 - 122 38 - 122 38 - 122
Inlet temperature °F 140 140 140
RefrigerantR-513A R-513A R-513A
Weight lb 123 146 152
Dimensions
W x D x H in
25.2 x 26.1 x 24 25.2 x 26.1 x 24 25.2 x 26.1 x 24
Compressed air connection1 NPT 1¼ NPT 1¼ NPT
Condensate drain connection¼ NPT ¼ NPT ¼ NPT
Power supply230 V / 1 Ph / 60 Hz 230 V / 1 Ph / 60 Hz 230 V / 1 Ph / 60 Hz
Refrigerant mass lb 1.37 1.63 2.09
Refrigerant mass as CO2 equivalent t 0.39 0.47 0.6
Hermetic refrigeration circuit- - -

ModelTCH 45
Flow rate cfm 159
Pressure loss psi 2.61
Electrical power consumption at 100% vol. hp 1.73
Working pressure psi 44 - 232
Ambient temperature °F 38 - 122
Inlet temperature °F 140
RefrigerantR-513A
Weight lb 165
Dimensions
W x D x H in
25.2 x 26.1 x 24
Compressed air connection1¼ NPT
Condensate drain connection¼ NPT
Power supply230 V / 1 Ph / 60 Hz
Refrigerant mass lb 2.27
Refrigerant mass as CO2 equivalent t 0.65
Hermetic refrigeration circuit-
